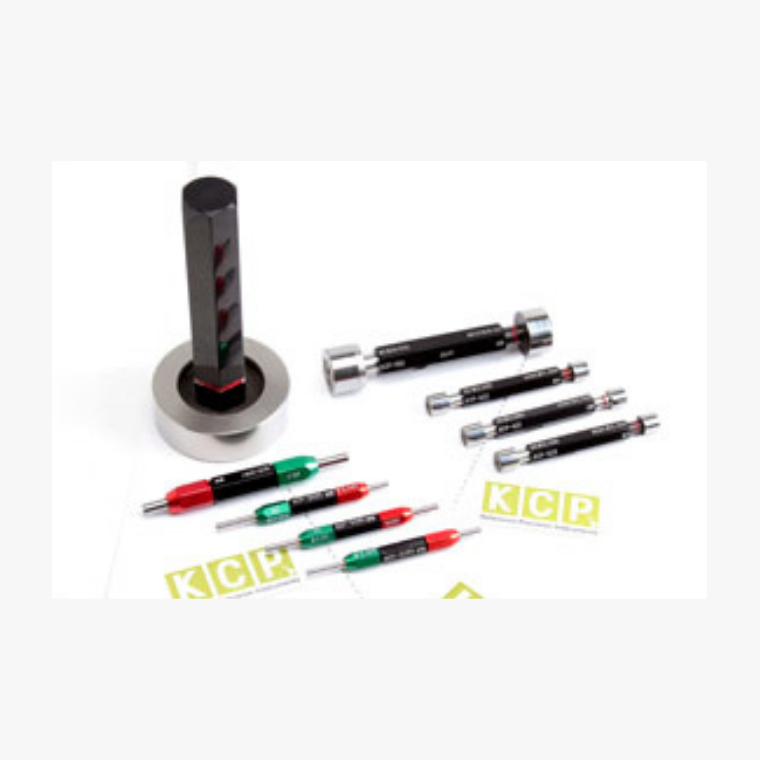

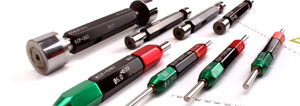

They are ideal for inspecting holes or slots (pass/fail). They are also used as Masters for setting Micrometers, Vernier Calipers etc.
|
|
| Material | |
|---|---|
| Type | |
| Applicable Indian Std | IS 11103-1984, IS 6137 1983 mfg, IS 6244 1980 mfg, IS 7018 (part -2) 1983 Assembly |
| Indian Standard Range In mm | 1.001-3.000, 10.001-14.000, 14.001-18.000, 18.001-24.000, 24.001-30.000, 3.001-6.000, 30.001-40.000, 40.001-50.000, 50.001-65.000, 6.001-10.000, 65.001-80.000, 80.001-90.000, 90.001-95.000, 95.001-100.000 |
- We offer a choice of choosing between GO and NO-GO both made in Tungsten Carbide/Steel and GO in Tungsten Carbide with NO-GO in Steel. The latter type is more popular owing to the cost advantage.
- We also manufacture Plain Plug Gauges to relevant I.S., B.S. and DIN standards based on customer requests from 1- 400mm diameter.
- We are also specialize in non-standard designs such as extra lengths, multiple diameters, air grooves, pilots, depth steps and relieved NO-GO ends.
| Type | Range |
| Reversible | Ф 0.5-8 |
* All figures in mm
| Type | Range | Ф8-10 | Ф10-14 | Ф14-18 | Ф18-24 | Ф24-30 | Ф30-40 |
| Taper Shank | L/L1 (Carbide) | 10/10 | 10/10 | 15/10 | 15/15 | 15/15 | 15/15 |
| L/L1 (Steel) | 10/10 | 12/10 | 14/10 | 16/15 | 18/15 | 20/15 |
* All figures in mm
| Type | Range | Ф40-50 | Ф 50-65 | Ф65-110 | Ф110-120 |
| Trilock | L/L1 (Carbide) | 20/18 | 20/18 | – | – |
| L/L1 (Steel) | 25/18 | 30/18 | 35/25 | 40/25 |
* All figures in mm
| Type | Range | Ф50-100 | Ф100-200 | Ф200-300 | Ф300-400 |
| Plate and paddle | L/L1 (Carbide & Steel) | 25/20 | 25/20 | 30/25 | 30/25 |
* All figures in mm
