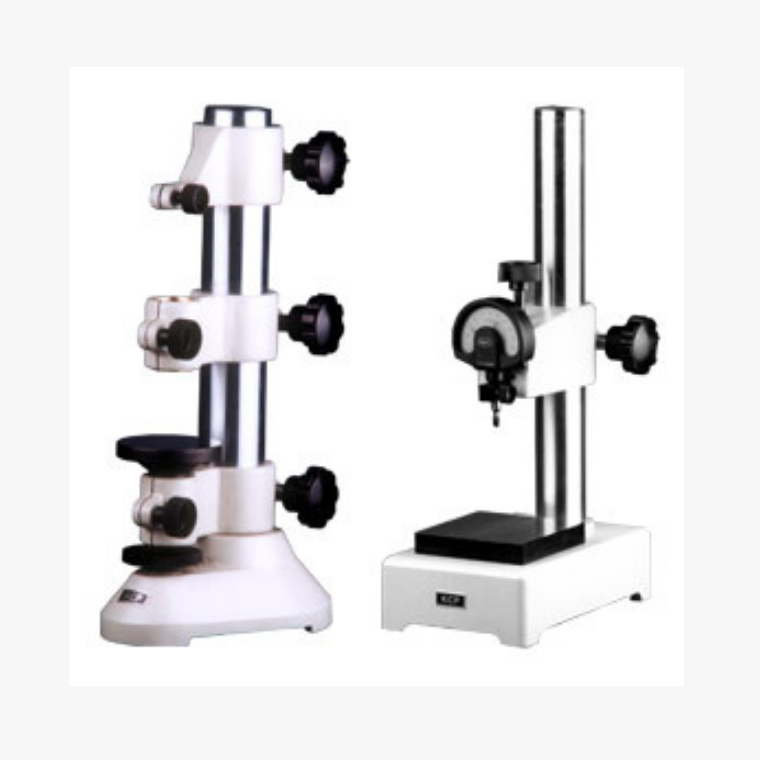

Comparator Stands are basic building-blocks for the assembly of special-purpose, precision-measuring equipment. By mounting precision-measuring instruments onto the stands, all types of measurement including comparative measurement is possible.
|
| Material |
|---|
- The Comparator Stands consist of a very stable, castiron base and an upright column with a mounting bracket that features fine adjustment.
- Standard Stands are furnished with steel hardened & lapped base with diameter 8mm dial gauge mounting arm.
| Range | Mounting Hole | Work Table | Material |
| 0-150 mm with Fine adjustment | ø 8 mm, ø28 mm & ø30mm | ø60 mm | Steel / Carbide |
| 0-200 mm with Micro Fine adjustment | ø8 mm | 60 x 60 x 6 mm | Steel / Carbide |
| 80 x 80 x 16 mm | Steel | ||
| 0-300 mm with Micro Fine adjustment | ø8 mm | 60 x 60 x 6 mm | Steel / Carbide |
| 80 x 80 x 16 mm | Steel |
- Weight of Comparator Stand – 13kg
- All Work tables are available in Plain or Serrated texture.
- Spare Comparator Base made of Steel / Carbide in Plain / Serrated is also available in following sizes –
1) ø 60 x 6 mm 2) ø 80 x 8 mm 3) 60 x 60 x 6 mm
